les accessoires de carrosserie industrielle
09 • 8



  RAILS D'ARRIMAGE

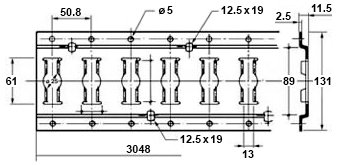

Rail d'arrimage universelPlan coté rail d'arrimage universel
Utilisation : barres porte vêtements, barres télescopiques, poutre aluminium et sangles

09.00.600
Rail universel horizontal 7,100 kg ACIER
09.00.601 Rail universel horizontal 6,700 kg INOX

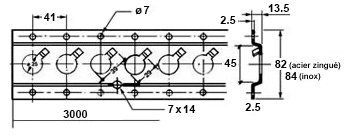

Rail d'arrimage vertical ou horizontalPlan coté rail d'arrimage vertical ou horizontal
Utilisation : barres télescopiques, sangles
Rail à trous rond + encoche

09.00.604 Rail vertical ou horizontal 4,500 kg ACIER ZINGUÉ
09.00.605 Rail vertical ou horizontal 3,500 kg INOX

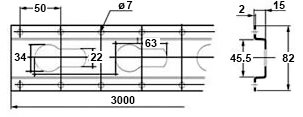

Rail d'arrimage vertical à trou de serrurePlan coté rail d'arrimage vertical à trou de serrure
Utilisation : barres porte vêtements, poutre aluminium, sangles munies de crochets
Longueur 3000 mm

09.00.606 Rail vertical à trou de serrure 3,900 kg ACIER ZINGUÉ
